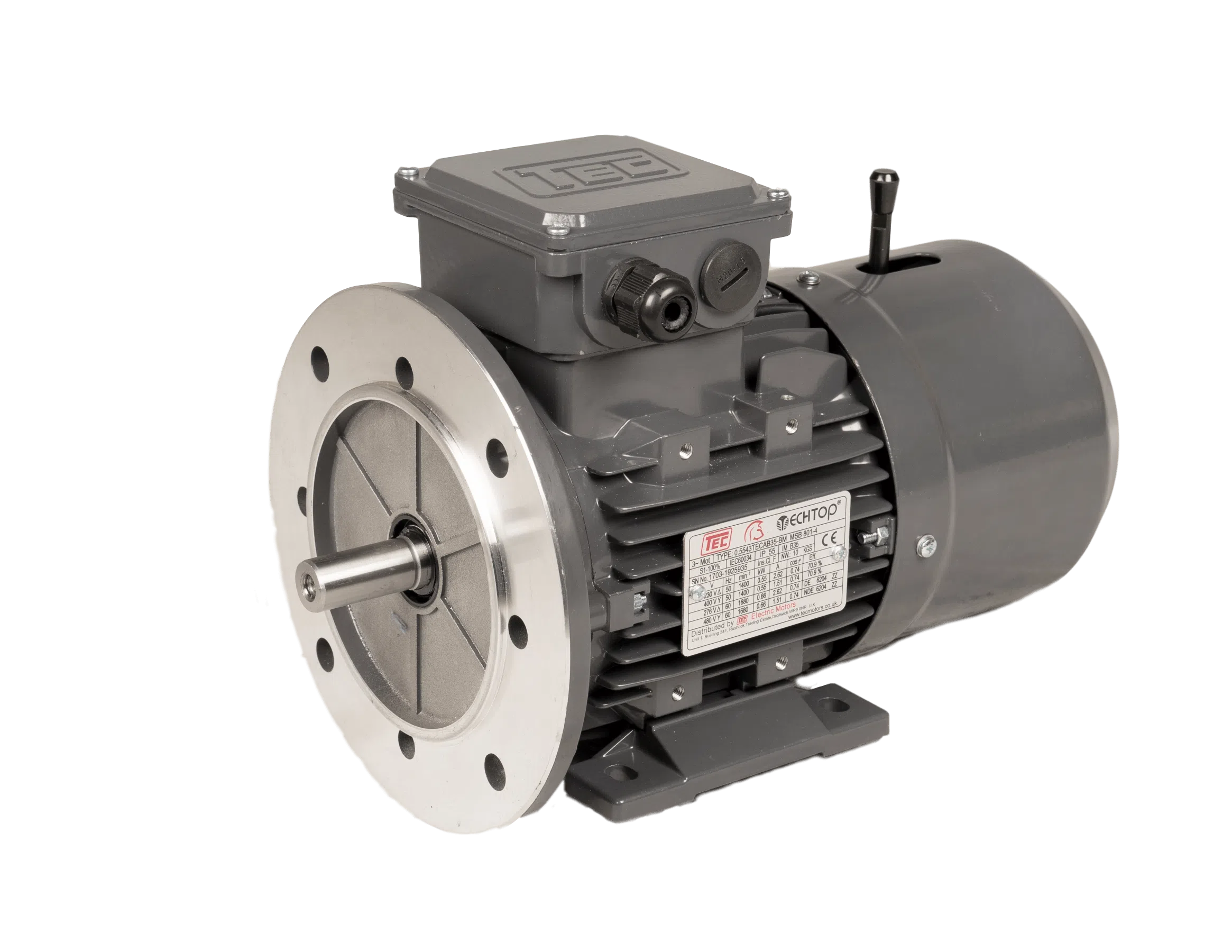

TEC Three Phase Electric Brake Motor, 3KW, (4HP), Flange Mounted(B5), 1500rpm(4 pole), IE2 efficiency, 100 Frame, Aluminium Body

Description

Available from stock, this 3.0kW electric brake motor, which is made by TEC Electric Motors has an output speed of 1500rpm. Note: 1500rpm is the standard speed of the motor. The output speed is dictated by the Hz frequency and therefore this motor will also be appropriate to use if your output speed is 1375rpm, 1400rpm, 1425rpm or 1450rpm etc. This unit can be described as a 3.0kW, (4HP,) 1500rpm, Three Phase, IE2, Flange mounted (B5), 100 Frame in a Aluminium Body. The Brake Torque of 40 Nm is set and cannot be changed. This unit is supplied with a 205 Volt DC and Full Wave rectifier. This unit has a net weight of 26.4Kg. The alternative reference is 3.043TECAB5 – BM. If you require additional information please contact Sales on 01952 676925.
